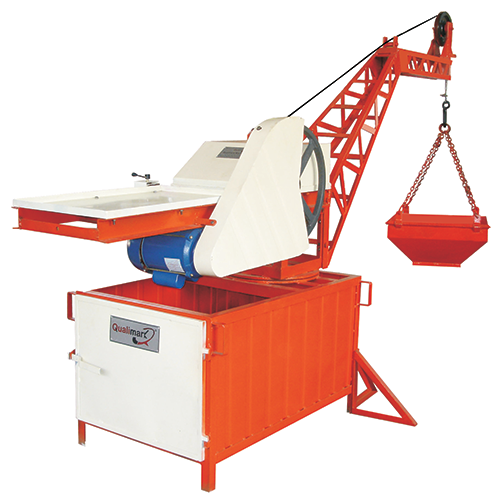

Mini Crane

- MC150

Overview

We are one of the prominent manufacturer and supplier for Quick Lifting Machines. These machines are used for quick lifting, loading and unloading of raw materials such as concrete, cement, sand, bricks, tiles, steel rods and other building material at various construction sites with minimum man power and time. It is usually installed at the terrace of the building. The machine has boom which can be rotated at 360 degree for easy and convenient material loading and unloading operation. It is widely used in high rise buildings, water proofing, quarries, building foundations, chemical factories, dam, bridge and well works.

Unique Features Precision-engineered product with unique features

Easy Operation
Low Maintenance
Simple Winch Hoist Mechanism
Heavy Duty, Robust & Balanced Chassis
Easily shift to one site to other site
Self-Balanced With Smart Counter Weight System
360 Degree Rotating Of Boom
Good Quality Usha Martin Wire Rope
Boom Rotation Locking System
Branded Company Motor

Optional

Material Bucket

Technical Specification

- Type
- MC150
- MC300
- MC500
- Capacity
- 150 Kg.
- 300 Kg.
- 500 Kg.
- Height
- 100 Ft.
- 100 Ft.
- 100 Ft.
- Boom Length
- 6.5 Ft. (Approx.)
- 6.5 Ft. (Approx.)
- 6.5 Ft. (Approx.)
- Power
- 2 HP Single Phase Ele. Motor (Crompton)
- 3 HP Single Phase / Three Phase Ele. Motor (Crompton)
- 5 HP Three Phase Ele. Motor (Crompton)
- Bucket
- 2 Nos.
- 2 Nos.
- 2 Nos.
- Wire Rope
- 8 mm Wire Rope
- 10 mm Wire Rope
- 10 mm Wire Rope
